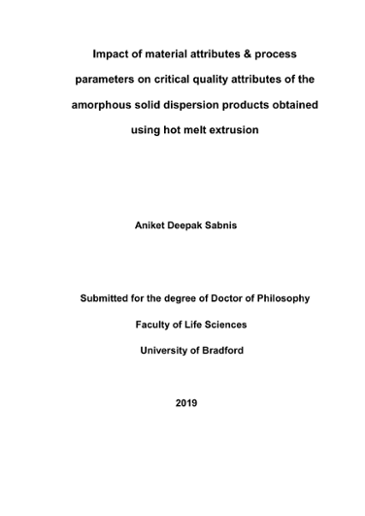

Impact of material attributes & process parameters on critical quality attributes of the amorphous solid dispersion products obtained using hot melt extrusion

Sabnis, Aniket D.
Publication Date
End of Embargo
Supervisor
Keywords
Hot melt extrusion, Solid dispersion, Crystallisation, Ibuprofen, Polyox, Soluplus, Affinisol(TM)HPMC, Controlled release
Rights
Creative Commons License
The University of Bradford theses are licenced under a Creative Commons Licence.
Peer-Reviewed
Open Access status
Accepted for publication
Institution
University of Bradford
Department
Faculty of Life Sciences
Awarded
2019
Embargo end date
Collections
Theses
Show all metadata
Files
Thumbnail Image
sabnis, a.d.pdf
Adobe PDF, 11.95 MB
Additional title
Abstract
The feasibility of hot melt extrusion (HME) was explored for development of amorphous solid dispersion systems. Controlled release formulations were developed using a cellulose based derivative, AffinisolTMHPMC 100cP and 4M grades. BCS class II drugs ibuprofen and posaconazole were selected due to their difference in glass transition temperature and lipophilicity. This study focused on investigation of the impact the material attributes and process parameters on the critical quality attributes in preparation of amorphous solid dispersions using hot melt extrusion. The critical quality attributes were sub divided into three main attributes of material, process and product. Rheology of ibuprofen-Affinisol 100cP from melt phase to extrudate phase was tracked. A partial factorial design was carried out to investigate the critical parameters affecting HME. For optimisation of 40%IBU-Affinisol 100cP blends, a feed rate of 0.6kg/hr, screw speed of 500rpm and screw configuration with two mixing elements were found to be optimum for single phase extrudates. ATR-FTIR spectroscopy was found to be an indirect technique of choice in predicting the maximum ibuprofen drug load within extrudates. Prediction was based on the prepared extrudates without charging them to stability conditions. An alternative strategy of incorporation of di-carboxylic acids to increase the dissolution of posaconazole-Affinisol 4M blends was investigated. Succinic acid and L- malic acid incorporation was found to increase the dissolution of posaconazole. Although, the extrudates crystallised out quicker than the naïve posaconazole-Affinisol 4M, but free posaconazole formed eutectic and co-crystal with succinic and L-malic acid within extrudates. This lead to an increase in dissolution of the extrudates compared to day 0.
URI
http://hdl.handle.net/10454/17458
Version
Citation
Link to publisher’s version
Link to published version
Link to Version of Record
Type
Thesis
Qualification name
PhD
