Loading...
Long-chain branched poly(lactic acid)- b-poly(lactide- co-caprolactone): Structure, viscoelastic behavior, and triple-shape memory effect as smart bone fixation material
Liu, Y. Cao, H. Ye, L. Coates, Philip D. Caton-Rose, Philip D. Zhao, X.
Liu, Y.
Cao, H.
Ye, L.
Coates, Philip D.
Caton-Rose, Philip D.
Zhao, X.
Publication Date
2020-03-11
End of Embargo
Supervisor
Rights
© 2020 ACS. This document is the Accepted Manuscript version of a Published Work that appeared in final form in Industrial and Engineering Chemistry Research, copyright © American Chemical Society after peer-review and technical editing by the publisher. To access the final edited and published work see https://doi.org/10.1021/acs.iecr.9b06514.
Peer-Reviewed
Yes
Open Access status
Green
Accepted for publication
2020-02-19
Institution
Department
Awarded
Embargo end date
Additional title

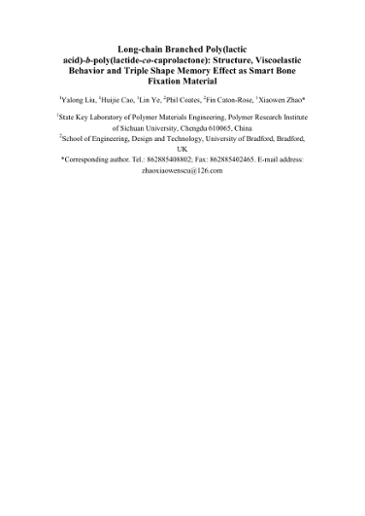

Abstract
A novel fully biosbased poly(lactic acid)-b-poly(lactide-co-caprolactone) (PLA-b-PLCL) with a two-phase structure and long-chain branches was specifically designed and prepared through reactive melt processing. The results showed that PLCL segments were introduced onto PLA chains successfully. With the increase of PLCL content, the blockier distribution of LA/CL chain sequences of the sample was exhibited. PLA-b-PLCL showed two distinct thermal transitions, corresponding to the glass transition of PLA and PLCL domains, respectively, whereas the phase morphology changed from a sea-island to a co-continuous structure with increasing PLCL content. Because of the long-chain branched structure, PLA-b-PLCL samples showed a much higher viscoelasticity, strong molecular entanglement, and obvious strain-hardening behavior, resulting in a high draw ratio of the sample during orientation process, whereas the tensile strength and the modulus of the oriented sample reached up to 173 MPa and 5.4 GPa, respectively, which basically met the requirements of bone screws. Moreover, PLA-b-PLCL showed a triple-shape memory effect at 55 and 120 °C, respectively. For PLA-b-30 wt % PLCL, the recovery ratio can reach up to 98.1% under 55 °C, while high mechanical properties can be maintained, realizing self-reinforcement and self-fastening effect simultaneously as a smart bone fixation material.
Version
Accepted manuscript
Citation
Liu Y, Cao H, He L et al (2020) Long-chain branched poly(lactic acid)- b-poly(lactide- co-caprolactone): Structure, viscoelastic behavior, and triple-shape memory effect as smart bone fixation material. Industrial and Engineering Chemistry Research. 59(10): 4524-4532.
Link to publisher’s version
Link to published version
Link to Version of Record
Type
Article
