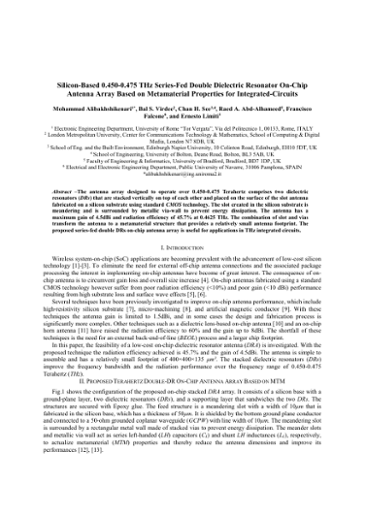

Silicon-based 0.450-0.475 THz series-fed double dielectric resonator on-chip antenna array based on metamaterial properties for integrated-circuits
Alibakhshikenari, M. Virdee, B.S. See, C.H. Falcone, F. Limiti, E.
Alibakhshikenari, M.
Virdee, B.S.
See, C.H.
Falcone, F.
Limiti, E.
Publication Date
2019-09
End of Embargo
Supervisor
Rights
© 2019 IEEE. Reproduced in accordance with the publisher's self-archiving policy.
Peer-Reviewed
Yes
Open Access status
Accepted for publication
2019
Institution
Department
Awarded
Embargo end date
Additional title
Abstract
The antenna array designed to operate over 0.450-0.475 Terahertz comprises two dielectric resonators (DRs) that are stacked vertically on top of each other and placed on the surface of the slot antenna fabricated on a silicon substrate using standard CMOS technology. The slot created in the silicon substrate is meandering and is surrounded by metallic via-wall to prevent energy dissipation. The antenna has a maximum gain of 4.5dBi and radiation efficiency of 45.7% at 0.4625 THz. The combination of slot and vias transform the antenna to a metamaterial structure that provides a relatively small antenna footprint. The proposed series-fed double DRs on-chip antenna array is useful for applications in THz integrated circuits.
Version
Accepted manuscript
Citation
Alibakhshikenari M, Virdee BS, See CH et al (2019) Silicon-based 0.450-0.475 THz series-fed double dielectric resonator on-chip antenna array based on metamaterial properties for integrated-circuits. In: 2019 Thirteenth International Congress on Artificial Materials for Novel Wave Phenomena (Metamaterials). 16-21 Sep 2019, Rome, Italy.
Link to publisher’s version
Link to published version
Link to Version of Record
Type
Conference paper
