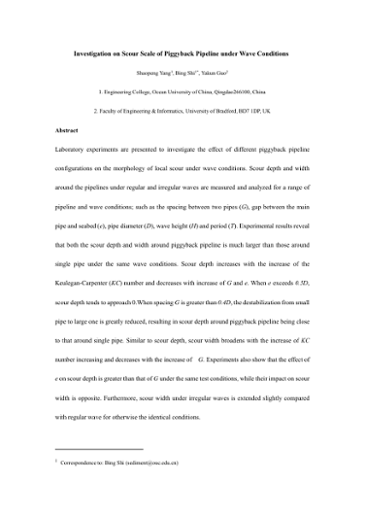

Investigation on scour scale of piggyback pipeline under wave conditions

Yang, S.
Shi, B.
Guo, Yakun
Publication Date
2019-06-15
End of Embargo
Supervisor
Rights
© 2019 Elsevier Ltd. All rights reserved. Reproduced in accordance with the publisher's self-archiving policy. This manuscript version is made available under the CC-BY-NC-ND 4.0 license.
Peer-Reviewed
Yes
Open Access status
Accepted for publication
2019-04-22
Institution
Department
Awarded
Embargo end date
Additional title
Abstract
Laboratory experiments are presented to investigate the effect of different piggyback pipeline configurations on the morphology of local scour under wave conditions. Scour depth and width around the pipelines under regular and irregular waves are measured and analyzed for a range of pipeline and wave conditions; such as the spacing between two pipes (G), gap between the main pipe and seabed (e), pipe diameter (D), wave height (H) and period (T). Experimental results reveal that both the scour depth and width around piggyback pipeline is much larger than those around single pipe under the same wave conditions. Scour depth increases with the increase of the Keulegan-Carpenter (KC) number and decreases with increase of G and e. When e exceeds 0.5D, scour depth tends to approach 0.When spacing G is greater than 0.4D, the destabilization from small pipe to large one is greatly reduced, resulting in scour depth around piggyback pipeline being close to that around single pipe. Similar to scour depth, scour width broadens with the increase of KC number increasing and decreases with the increase of G. Experiments also show that the effect of e on scour depth is greater than that of G under the same test conditions, while their impact on scour width is opposite. Furthermore, scour width under irregular waves is extended slightly compared with regular wave for otherwise the identical conditions.
Version
Accepted manuscript
Citation
Yang S, Shi B and Guo Y (2019) Investigation on scour scale of piggyback pipeline under wave conditions. Ocean Engineering. 182: 196-202.
Link to publisher’s version
Link to published version
Type
Article
