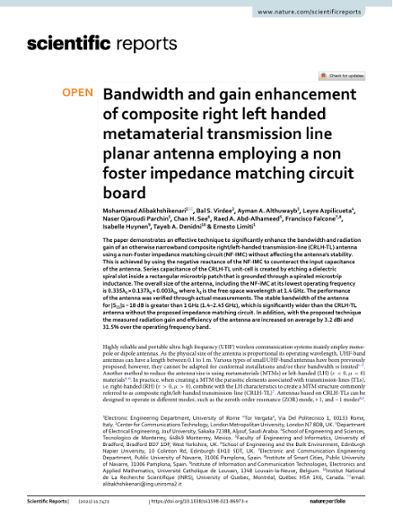

Bandwidth and gain enhancement of composite right/left-handed metamaterial transmission-line planar antenna employing a non foster impedance matching circuit board
Alibakhshikenari, M. Virdee, B.S. Althuwayb, A.A. Azpilicueta, L. Ojaroudi Parchin, Naser See, C.H. Falcone, F. Huynen, I. Denidni, T.A.
Alibakhshikenari, M.
Virdee, B.S.
Althuwayb, A.A.
Azpilicueta, L.
Ojaroudi Parchin, Naser
See, C.H.
Falcone, F.
Huynen, I.
Denidni, T.A.
Publication Date
2021-04, 2021-04
End of Embargo
Supervisor
Rights
© The Author(s) 2021. This article is licensed under a Creative Commons Attribution 4.0 International
License, which permits use, sharing, adaptation, distribution and reproduction in any medium or
format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the
Creative Commons licence, and indicate if changes were made. The images or other third party material in this
article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the
material. If material is not included in the article’s Creative Commons licence and your intended use is not
permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from
the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
Peer-Reviewed
Yes
Open Access status
Gold
Accepted for publication
2021-03-22
Institution
Department
Awarded
Embargo end date
Additional title
Abstract
The paper demonstrates an effective technique to significantly enhance the bandwidth and radiation gain of an otherwise narrowband composite right/left-handed transmission-line (CRLH-TL) antenna using a non-Foster impedance matching circuit (NF-IMC) without affecting the antenna's stability. This is achieved by using the negative reactance of the NF-IMC to counteract the input capacitance of the antenna. Series capacitance of the CRLH-TL unit-cell is created by etching a dielectric spiral slot inside a rectangular microstrip patch that is grounded through a spiraled microstrip inductance. The overall size of the antenna, including the NF-IMC at its lowest operating frequency is 0.335λ0 × 0.137λ0 × 0.003λ0, where λ0 is the free-space wavelength at 1.4 GHz. The performance of the antenna was verified through actual measurements. The stable bandwidth of the antenna for |S11|≤ - 18 dB is greater than 1 GHz (1.4-2.45 GHz), which is significantly wider than the CRLH-TL antenna without the proposed impedance matching circuit. In addition, with the proposed technique the measured radiation gain and efficiency of the antenna are increased on average by 3.2 dBi and 31.5% over the operating frequency band.
Version
Published version
Citation
Alibakhshikenari M, Virdee BS, Althuwayb AA et al (2021) Bandwidth and gain enhancement of composite right/left-handed metamaterial transmission-line planar antenna employing a non foster impedance matching circuit board. Scientific Reports. 11: 7472.
Link to publisher’s version
Link to published version
Link to Version of Record
Type
Article
